BA6110-1

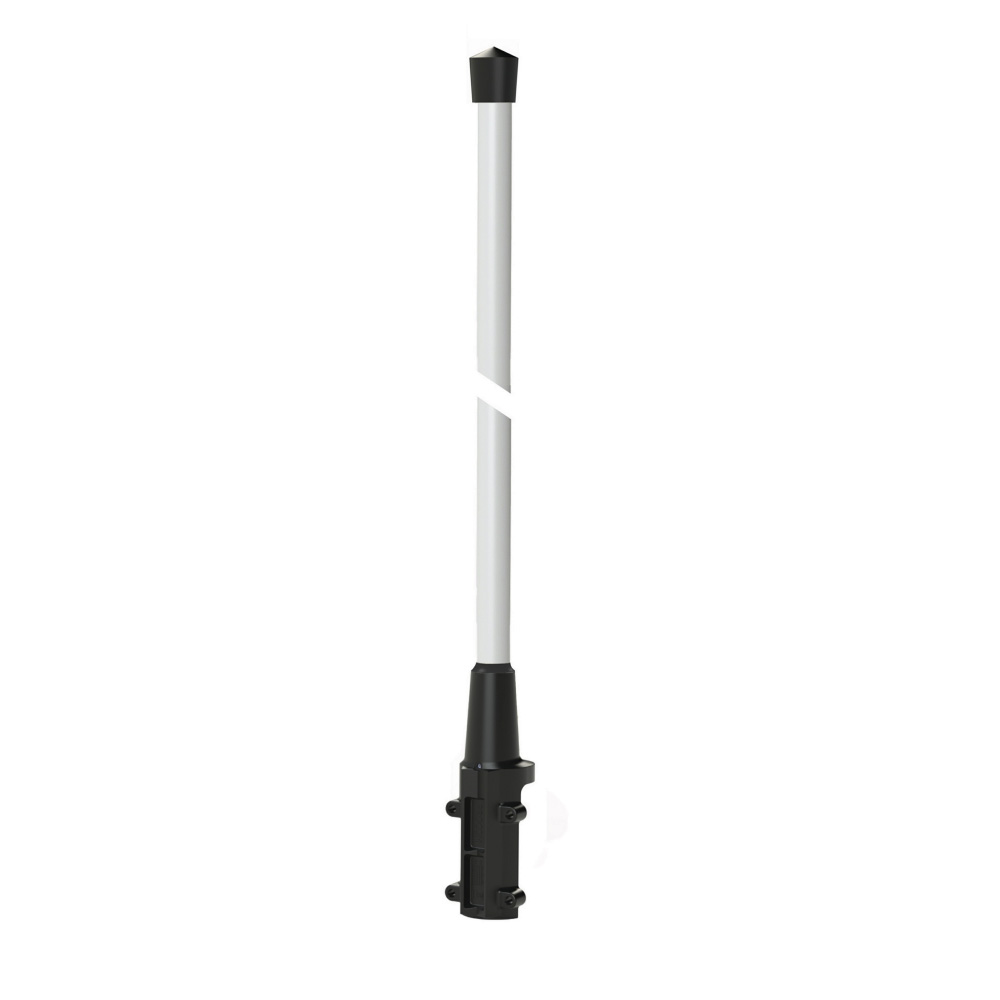

Omnidirectional Fiberglass Antenna, 400-470, 2.2 dBi, N Female

FEATURES:

These antennas feature a broad frequency band and rugged construction. Radiating elements are encased in a weather-resistant, low-loss fiberglass radome. The size and mounting fixtures allow for easy storage and fast installation. Ideal for use where reliability is of the utmost importance. With a sturdy and strong construction, these antennas have been designed for a long lifetime.

  • Unity gain, broadband base station antenna
  • The antenna is shipped with our “C” mast bracket, which is a universal, epoxy-coated mounting bracket made of non-corrosive aluminum. The accompanying U-bolts and fittings are made of stainless steel
  • The antenna can be mounted on 27-65 mm (1.1-2.6 in) diameter mast tubes and it is possible to lead the cable either along the inside or on the outside of the mast tube
  • The broad-banded antenna element is completely enclosed in a fiberglass shroud, which will ensure performance undisturbed by corrosive environments
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial  cable
  • This antenna is constructed to ensure long dependable service in all climates
