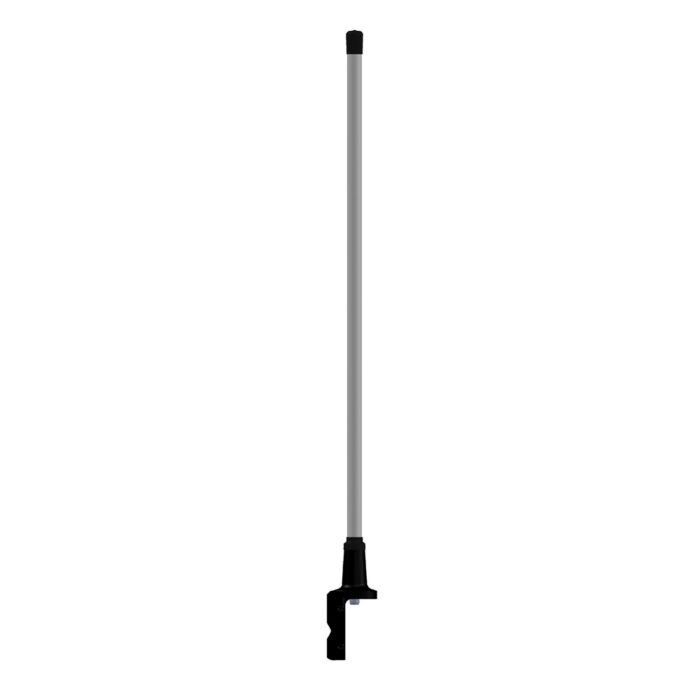

BA6312-6

FEATURES:

This antenna with a broad frequency band and rugged construction is ideal for both base station and marine deployments. Radiating elements are encased in a weather-resistant, low-loss fiberglass radome. The size and mounting fixtures allow for easy storage and fast installation. Ideal for use where reliability is of the utmost importance. With a sturdy and strong construction, these antennas have been designed for a long lifetime.

• 3 dBd (5.2 dBi), vertically polarized, omnidirectional base station and marine antenna, covering the 410-430 MHz band
• Shipped with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminum
• The accompanying U-bolts and fittings are made of stainless steel
• Can be mounted vertically or horizontally on 16-54 mm (0.6-2.1 in) diameter mast tubes
• The carefully designed radiating element is sealed within a high-quality, fiberglass radome with low windload, which will ensure performance undisturbed by corrosive environments
• To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial
  cable
• The exceptional mechanical capabilities of this antenna ensure long dependable service in all environments
