BA6012-1

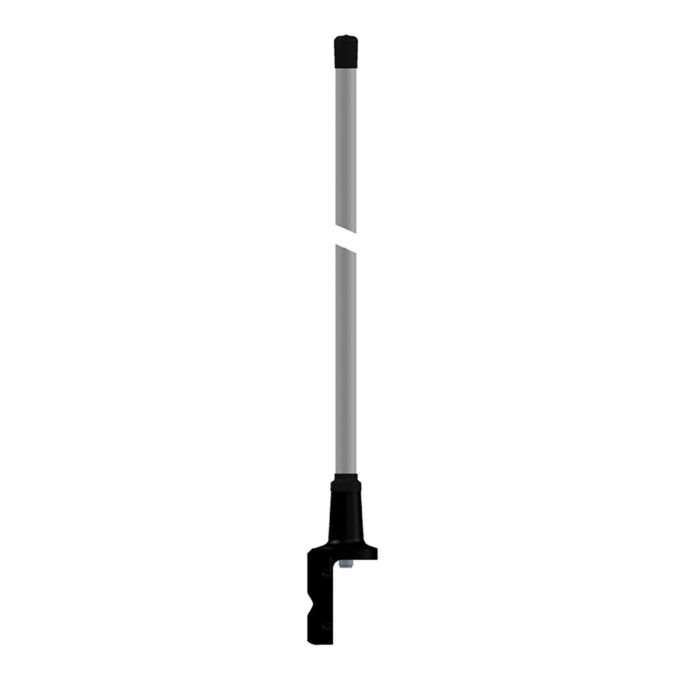

Omnidirectional Fiberglass Antenna, 449-471, 2.0 dBi, N Female

FEATURES:

This antenna with a broad frequency band and rugged construction is ideal for both base station and marine deployments in hazardous areas. Radiating elements are encased in a weather-resistant, low-loss fiberglass radome. The size and mounting fixtures allow for easy storage and fast installation. Ideal for use where reliability is of the utmost importance. With a sturdy and strong construction, these antennas have been designed for a long lifetime.

  • A 0 dBd (2 dBi), vertically polarized, omnidirectional base station and marine antenna covering the 449-471 MHz band
  • Can be mounted vertically or horizontally on 16-54 mm (0.6-2.1 in) diameter mast tubes
  • Cable can be led either on the outside or along the inside of the mast tube
  • The carefully designed, broad-banded ½ λ-dipole radiating element is made of brass and sealed in a high-quality fiberglass radome with low windload
  • Shipped with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminum
  • Accompanying U-bolts and fittings are made of stainless steel
  • All metal parts within the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable

View Data Sheet
