BA1012-1

FEATURES:

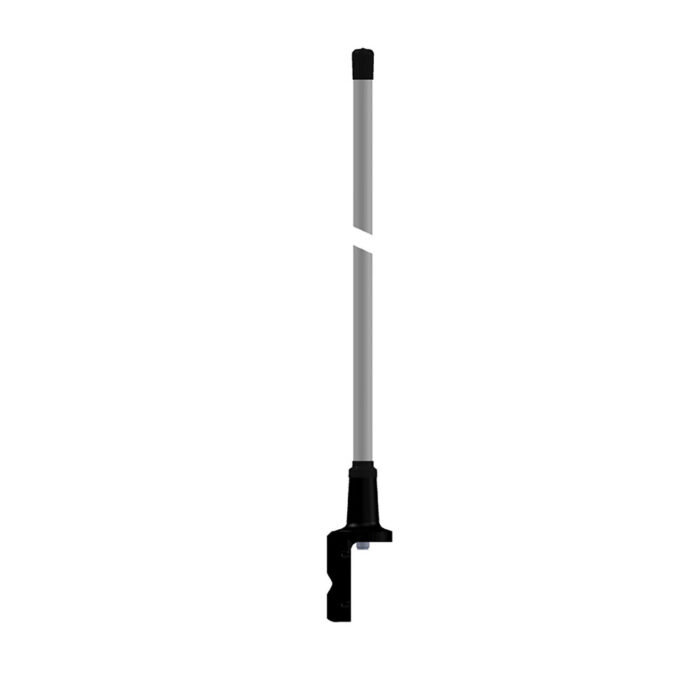

This universal antenna with a broad frequency band and rugged construction is ideal for both base station and marine deployments. Radiating elements are encased in a weather-resistant, low-loss fiberglass radome. The size and mounting fixtures allow for easy storage and fast installation. Ideal for use where reliability is of the utmost importance. With a sturdy and strong construction, these antennas have been designed for a long lifetime.

• This multi-purpose, omnidirectional, 0 dBd (2 dBi), rod-type base station and marine antenna covers the 144-162 MHz band and can be used in a wide variety of applications
• The broad-banded ½ λ dipole antenna element is sealed in a high-quality conical fiberglass tube with low wind-load, which will ensure undisturbed performance by corrosive
  environments
• Shipped with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminum
• Accompanying U-bolts and fittings are made of stainless steel
• Can be mounted vertically or horizontally on mast tubes with an outer diameter of 16-54 mm (0.6-2.1 in)
• Cable can be led either on the outside or along the inside of the mast tube
• Wide bandwidth with respect to both VSWR and gain
• DC-grounded to substantially reduce noise caused by atmospherical discharges and consequently shows a DC-short across the coaxial cable
• Vibration-proof, lightweight, slim-line, corrosion-resistant, modern style base station and marine antenna
